GCU500PS36-EF
36Vdc 13.9A, 36V Enclosed Type Power Supply, Medical & ITE Certifications, 36 Volts 13.9 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$235.50
5
$228.44
10
$221.36
25
$211.95
100
$197.82
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
13.9 Amps
Max Power:
500 Watts
Features

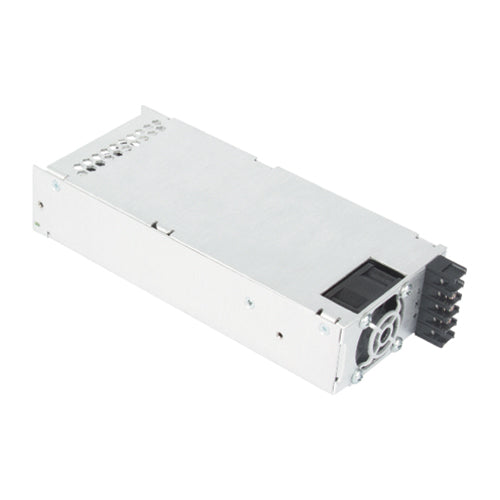

XP Power GCU500PS36-EF enclosed medical & ITE power supply
AC input range: 80~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current ≤270µA
Built-in fan
Built-in remote On/Off
Remote sense function
AC OK signal
Built-in 5V/0.2A standby
Built-in PFC
Operation up to 5000m altitude
High power density: 15W/in³
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
