PBR650PS36C
36Vdc 18.06A, 36V Enclosed Type Power Supply, Medical Certification, 36 Volts 18.06 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
18.06 Amps
Output Peak Current:
20 Amps
Max Power:
650 Watts
Features

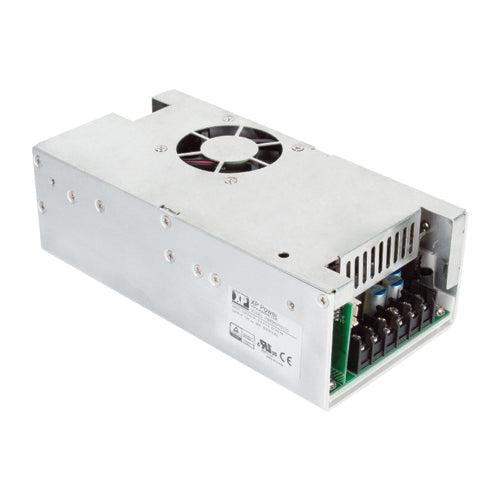

XP Power PBR650PS36C 4x8 chassis medical power supply
AC input range: 80~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/EN 60601-1, ES 60601-1
2xMOPP
Suitable for Type BF applications
Peak power 110% for 15 seconds
Low earth leakage current ≤275µA
AC OK signal
Remote sense function
Built-in remote On/Off
Built-in 5V/0.2A standby output
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / over temperature
XP Power 3 year warranty
PBR650PS36C
36Vdc 18.06A, 36V Enclosed Type Power Supply, Medical Certification, 36 Volts 18.06 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
36Vdc
Output Max Current:
18.06 Amps
Output Peak Current:
20 Amps
Max Power:
650 Watts
Features
XP Power PBR650PS36C 4x8 chassis medical power supply
AC input range: 80~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/EN 60601-1, ES 60601-1
2xMOPP
Suitable for Type BF applications
Peak power 110% for 15 seconds
Low earth leakage current ≤275µA
AC OK signal
Remote sense function
Built-in remote On/Off
Built-in 5V/0.2A standby output
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / over temperature
XP Power 3 year warranty
