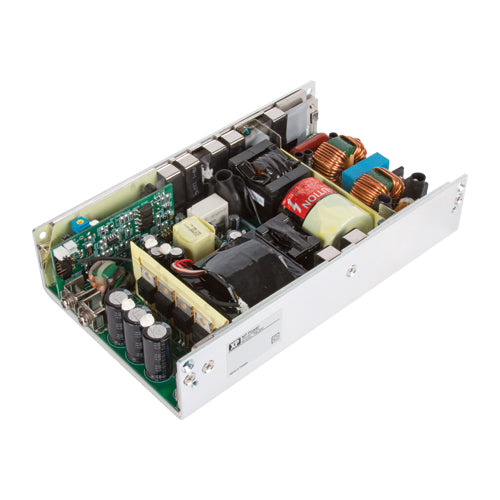

PBL500PS24B
24Vdc 20.84A, 24V Medical Power Supply, U-Channel, 24 Volts 20.84 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
20.84 Amps
Max Power:
500 Watts
Features
XP Power PBL500PS24B u-chassis medical power supply
AC input range: 80~264Vac
Operating temperature range: -10~+70°C
Medical safety certification: IEC/ES 60601-1
2xMOPP
BF rated
Class II isolation
250W convection cooled
Patient leakage current 80µA max
Built-in remote On/Off
Remote sense function
AC OK signal
Built-in 5V/2A standby output
Built-in 12V/0.3A fan supply
Built-in PFC
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / over temperature
XP Power 3 year warranty
