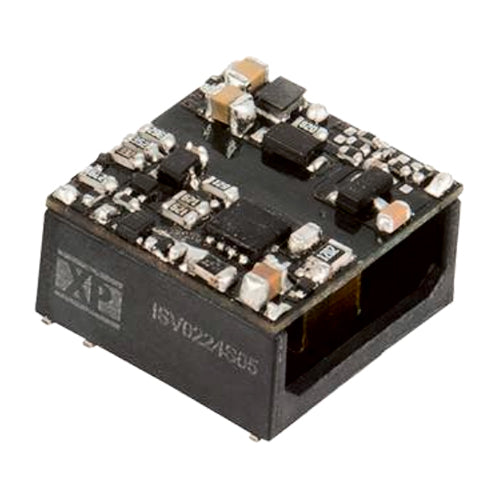

ISV0212S05
5Vdc 0.4A, DC/DC Converter, SMD Package, 4:1 InputManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$12.95
5
$12.56
10
$12.17
25
$11.66
100
$10.88
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
4.5~18Vdc
Output Voltage:
5Vdc
Output Max Current:
0.4 Amps
Max Power:
2 Watts
Features
XP Power ISV0212S05 SMD DC/DC converter
Ultra-wide 4:1 input range
Operating temperature range: -40~+75°C
MIL-STD-810F
Input filter meets EN 55032 class A
I/O isolation: 3000Vdc
Remote On/Off
Fully regulated output
Protections: short circuit / undervoltage-lockout
XP Power 3 year warranty
