HRC0524S1K5N

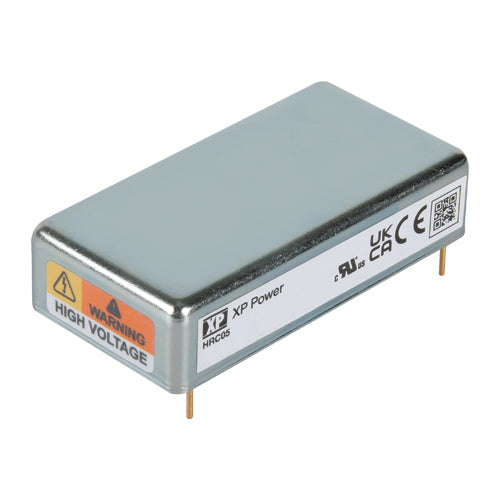

-1500Vdc 3.33mA, High Voltage DC/DC Converter, -1500 Volts, 3.33mA, Input Voltage: 22-30VdcManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$284.00
5
$275.48
10
$266.96
25
$255.60
100
$238.56
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
22~30Vdc
Output Voltage:
-1500Vdc
Output Max Current:
0.00333 Amps
Max Power:
5 Watts
Features
DC/HVDC converter
22~30Vdc input range
Operating temperature range: -40~+70°C
Industrial safety certification: UL/IEC/EN 62368-1 UL/IEC/EN 61010-1
No minimum load required
Remote On/Off
5Vdc reference output
Fully regulated output
Adjustable output voltage
Protections: short circuit / overload / undervoltage-lockout / over temperature / input overvoltage / over programming
XP Power 3 year warranty
