CCP550PS18-A

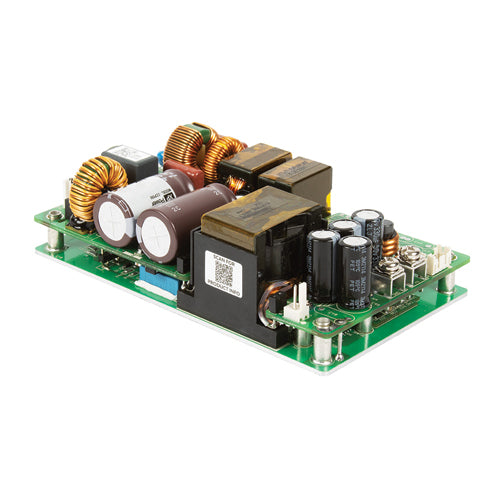

18Vdc 30.56A, 3x5 Open Frame Medical and ITE Power Supply, 18Vdc, Conduction Cooled, Low ProfileManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$195.00
5
$189.15
10
$183.30
25
$175.50
100
$163.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
18Vdc
Output Max Current:
30.56 Amps
Max Power:
550.08 Watts
Features
3X5 Open frame medical and ITE power supply
Wide AC input range: 80~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Built-in PFC
Built-in remote sense
Built-in remote On/Off
DC OK (Power Good) Signal
Built-in 12V/0.5A fan output
Built-in 5V/2.0A standby power
High efficiency up to 90%
Low leakage currents: <400μA earth leakage, <90μA patient leakage
Protections: short circuit / over voltage / overload /over temperature
XP Power 3 year warranty
