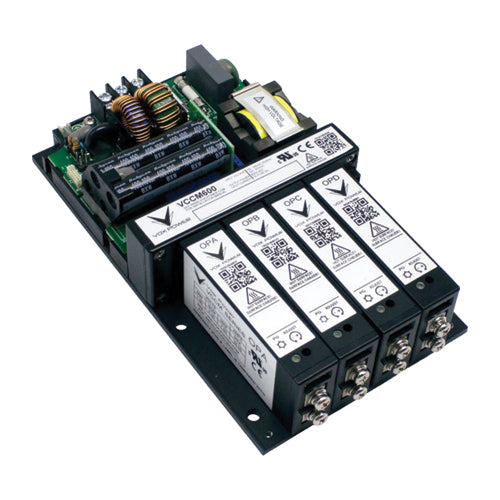

VCCM600M

600W Conduction Cooled Modular Input Module, 4x7, Medical Certifications, 4 Empty Slots

Manufacturer: Vox Power

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$316.62
5
$307.31
10
$285.07
25
$274.82

Specifications

Input Voltage:

85~264Vac

# Output Module Slots:

4 Slots

Max Output Power

600 Watts

Features

Vox Power VCCM600M 4x7 medical modular power supply

AC input range: 85~264Vac

Operating temperature range: -40~+70°C

Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1

2xMOPP

MIL-STD-810G

SEMI F47

High efficiency

Peak power 750W for 5 seconds

Low power standby mode ≤1 Watt

Fanless conduction cooled power supply

Low earth leakage current <200µA

Factory configurable output voltage combinations

Adjustable output voltage

Programmable output voltage and output current

Built-in 5V/1A auxiliary output

Remote sense function

Operation up to 3000m altitude, Protections: undervoltage / overvoltage / over temperature

Vox Power 5 year warranty
