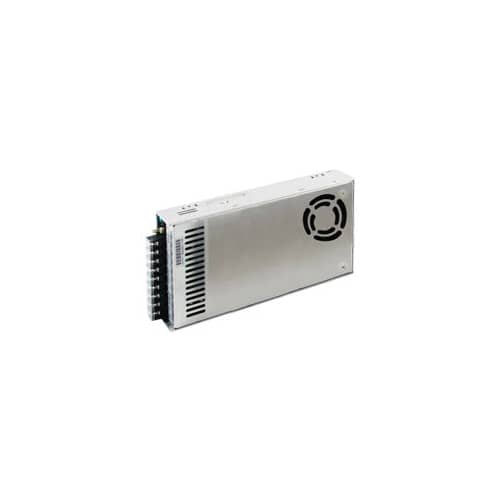

TZL 300-4824
24Vdc 13.4A, DC-DC Converter Screw Terminal BlockManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$330.64
10
$253.43
25
$216.84
50
$206.06
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
36~72Vdc
Output Voltage:
24Vdc
Output Max Current:
13.4 Amps
Max Power:
321.6 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TZL 300-4824 compact & enclosed DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -10~+60°C
EMC compliance with EN 61000-6-1 and EN 50082-1
Compact metal case with screw terminal block
I/O isolation 1500Vdc
Input reverse polarity protection
No minimum load required
Soft start, low inrush current
Adjustable output voltage
Protections: short circuit / over load
TRACO Power 3 year warranty
