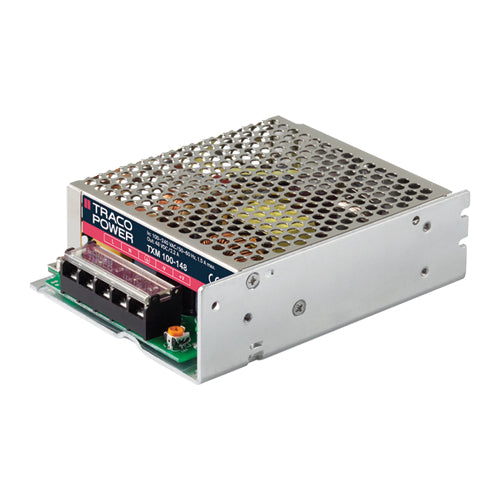

TXM 100-115
15Vdc 7A, 15 Volt Power SupplyManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
7 Amps
Max Power:
100 Watts
Features
TRACO Power TXM 100-115 enclosed industrial ITE power supply
Universal AC input range: 90~264Vac
Operating temperature: -25~+60°C
ITE safety approval: UL60950-1
Screw terminal block
Withstand 300Vac surge input for 5 seconds
Protections: over load / over voltage
TRACO Power 3 year warranty
TXM 100-115
15Vdc 7A, 15 Volt Power SupplyManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
7 Amps
Max Power:
100 Watts
Features
TRACO Power TXM 100-115 enclosed industrial ITE power supply
Universal AC input range: 90~264Vac
Operating temperature: -25~+60°C
ITE safety approval: UL60950-1
Screw terminal block
Withstand 300Vac surge input for 5 seconds
Protections: over load / over voltage
TRACO Power 3 year warranty
