Power Worth Searching For

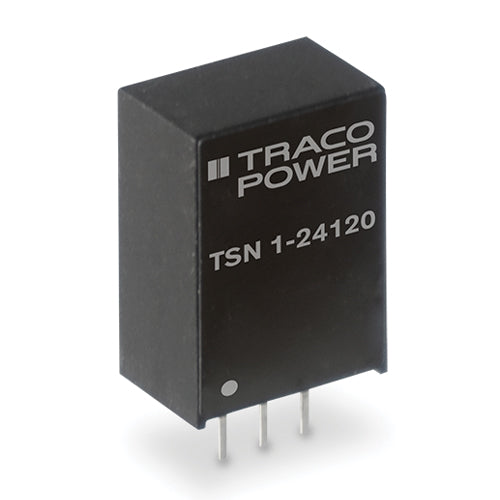

TSN 1-24150
-15.0V 1A, DC-DC Converter Straight Pins Switching RegulatorManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$14.00
10
$11.52
25
$11.25
100
$10.89
250
$10.76
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
-18~-32Vdc
Output Current:
1 Amps
Output Voltage:
-15 Vdc
Features
TRACO Power TSN 1-24150 non-isolated 1 Amp DC/DC converter
Operating temperature: -40~+85°C
Pin compatible with LM79xx linear regulators
Small size / low profile
Non-isolated converter for negative output
High efficiency
No heat-sink required
Fixed switching frequency
Excellent line/load regulation
Low standby current
Protections: Short circuit / overload / over temperature
TRACO Power 3 year warranty
