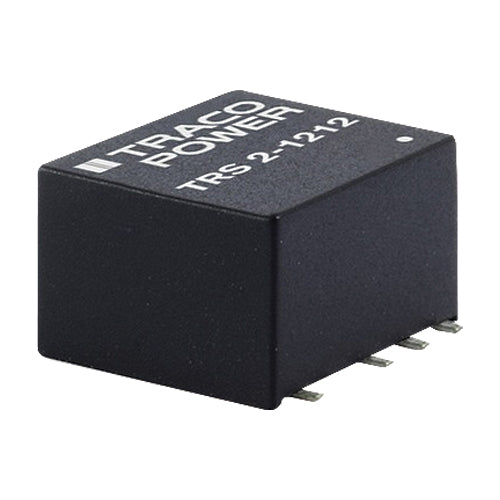

TRS 2-0922
Dual O/P, Dual Output DC/DC Converter Wide 2:1 Input Voltage Range Ultra Compact SMD PackageManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$15.81
10
$15.38
25
$14.78
100
$13.60
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
4.5~13.2Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.083 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
-0.083 Amps
Max Power:
2 Watts
Features
TRACO Power TRS 2-0922 ultra compact SMD package DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+90°C
Safety approvals: IEC/EN/UL 62368-1 & UL 60950-1
Complies to EN 55032, Class A or B with additional components
No minimum load required
I/O isolation 1600Vdc
Protections: short circuit
TRACO Power 3 year warranty
