TPI 50-105A-J

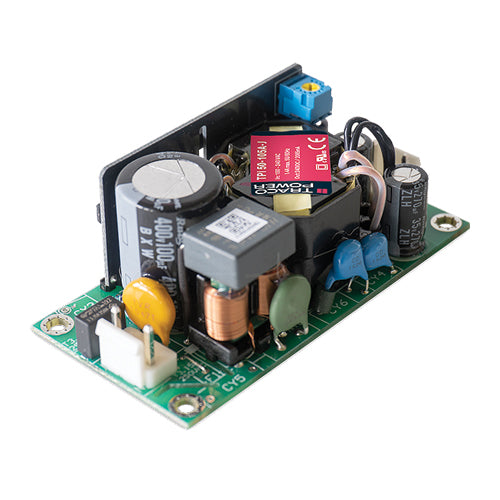

5Vdc 8A, 5 Volt Power Supply 1.5x3 Open Frame, Peak Power 5 Volts 8 AmpsManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
5Vdc
Output Max Current:
8 Amps
Max Power:
40 Watts
Features
TRACO Power TPI 50-105A-J 1.5x3 open frame industrial AC/DC power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Thermal shock to MIL-STD-810F
Class I and class II prepared
Overvoltage category III
Peak power 140% for 5 seconds
Adjustable output voltage
No load power consumption <0.3 Watts
Withstands 5G vibration
High efficiency
Meets conducted EMI Class B
Low leakage current ≤300µA
Operation up to 5000m altitude
Protections: short circuit / overvoltage
TRACO Power 3 year warranty
