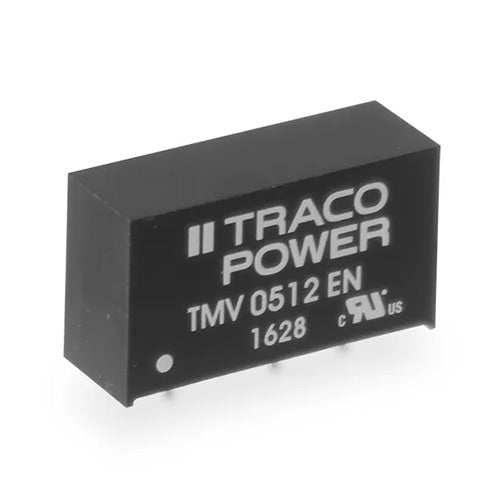

TMV 0512DEN
Dual O/P, Unregulated DC-DC Converter SIP-7 Package I/O Isolation 3000 VoltManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.04 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
0.04 Amps
Max Power:
1 Watts
Features
TRACO Power TMV 0512D EN compact SIP-7 package unregulated DC/DC converter
Operating temperature: -40~+85°C
Safety standards: certified to IEC/EN/UL 60950-1
I/O isolation voltage 3000Vacrms
Reinforced isolation, rated for 300Vac working voltage
Low coupling capacity
Safety barrier 100% production test
Short circuit protection
TRACO Power 3 year warranty
TMV 0512DEN
Dual O/P, Unregulated DC-DC Converter SIP-7 Package I/O Isolation 3000 VoltManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
4.5~5.5Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
0.04 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
0.04 Amps
Max Power:
1 Watts
Features
TRACO Power TMV 0512D EN compact SIP-7 package unregulated DC/DC converter
Operating temperature: -40~+85°C
Safety standards: certified to IEC/EN/UL 60950-1
I/O isolation voltage 3000Vacrms
Reinforced isolation, rated for 300Vac working voltage
Low coupling capacity
Safety barrier 100% production test
Short circuit protection
TRACO Power 3 year warranty
