Power Worth Searching For
TMDC 20-2418
48Vdc 0.42A, DC-DC Converter Chassis Mount, Screw Terminal Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
48Vdc
Output Max Current:
0.42 Amps
Max Power:
20 Watts
Features

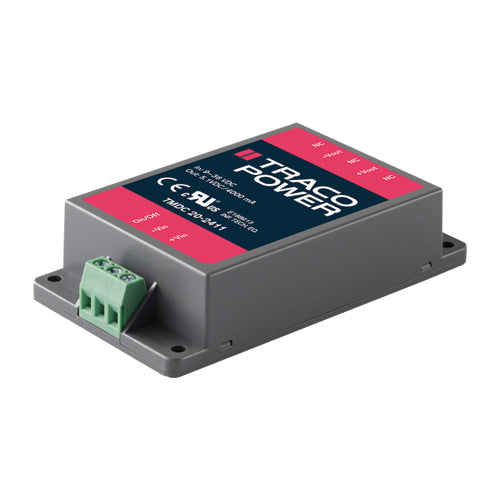

TRACO Power TMDC 20-2418 encapsulated DC/DC converter with screw terminals
Ultra wide 4:1 input voltage range
I/O isolation 2500Vdc
Operating temperature: -40~+90°C
Fully encapsulated low profile plastic case
Input filter to meet EN 55022, class A
High efficiency
No minimum load required
Power good LED indicator
Remote On/Off
Optional DIN-Rail mount adapter
Protections: short circuit / over voltage
TRACO Power 3 year warranty
