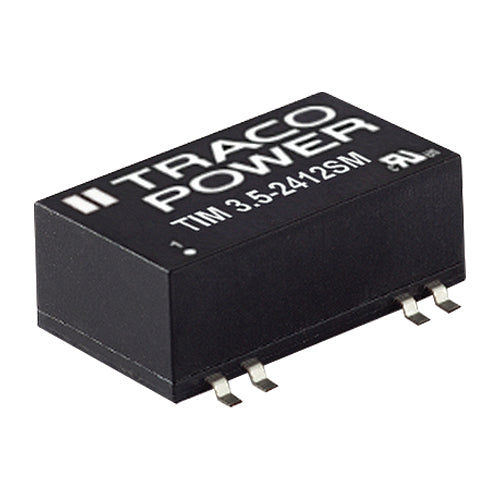

TIM 3.5-2413SM
15Vdc 0.234A, Medical DC/DC Converter Wide 2:1 Input Range SMD PackageManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$36.67
10
$36.20
25
$34.79
100
$30.77
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
18~36Vdc
Output Voltage:
15Vdc
Output Max Current:
0.234 Amps
Max Power:
3.5 Watts
Features
TRACO Power TIM 3.5-2413SM compact SMD-16 package DC/DC Converter
Wide 2:1 input voltage range
Operating temperature: -40~+95°C
Safety approvals: ANSI/AAMI ES 60601-1 & IEC/EN 60601-1 3rd edition
2xMOPP
I/O isolation 5000VACrms rated for 250 VACrms working voltage
Low leakage current <2µA for BF applications
Protections: short circuit / over voltage
TRACO Power 5 year warranty
TIM 3.5-2413SM
15Vdc 0.234A, Medical DC/DC Converter Wide 2:1 Input Range SMD PackageManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
18~36Vdc
Output Voltage:
15Vdc
Output Max Current:
0.234 Amps
Max Power:
3.5 Watts
Features
TRACO Power TIM 3.5-2413SM compact SMD-16 package DC/DC Converter
Wide 2:1 input voltage range
Operating temperature: -40~+95°C
Safety approvals: ANSI/AAMI ES 60601-1 & IEC/EN 60601-1 3rd edition
2xMOPP
I/O isolation 5000VACrms rated for 250 VACrms working voltage
Low leakage current <2µA for BF applications
Protections: short circuit / over voltage
TRACO Power 5 year warranty
