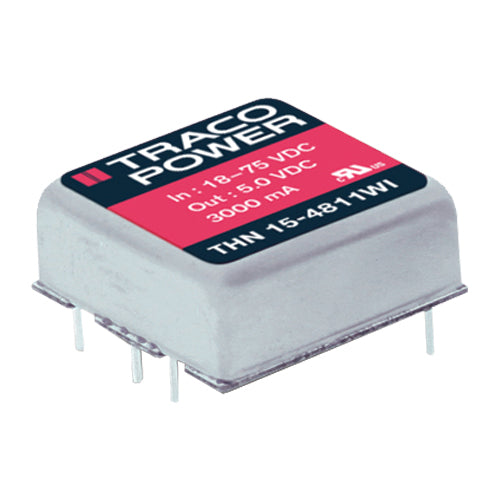

THN 15-2411WI-A1
5Vdc 3A, DC/DC Converter 1x1 Inch Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
5Vdc
Output Max Current:
3 Amps
Max Power:
15 Watts
Features
TRACO Power THN 15-2411WI-A1 compact 1x1 encapsulated on board DC/DC converter
Operating temperature: -40~+85°C
Safety approvals: UL/EN/IEC 60950-1
Ultra wide 4:1 input voltage range
I/O isolation 1500Vdc
Output voltage trim
Output voltage adjustable up to 6Vdc
Shielded metal case with insulated baseplate
Industry standard pinout
Remote On/Off
Protections: short circuit / over voltage
TRACO Power 3 year warranty
