Power Worth Searching For

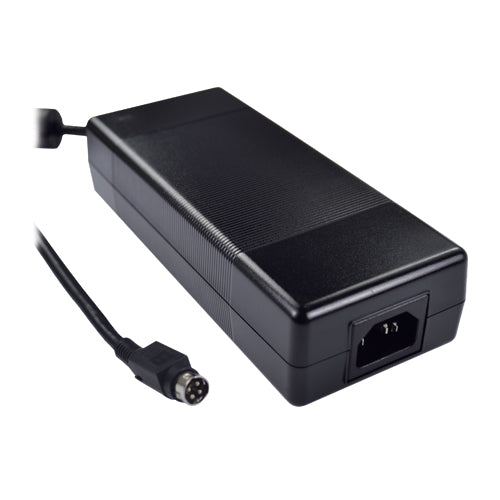

PMP135-18
48V Medical Power Supply Desk Top Class IManufacturer: Protek Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$167.41
15
$153.46
25
$131.59
100
$119.15
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
2.94 Amps
Output Peak Current:
3.5 Amps
Max Power:
141 Watts
Features
Protek Power PMP135-18 desk top medical AC/DC power supply
AC input range: 90~264Vac
Working temperature: 0~+60°C
Medical safety: UL ES60601-1
PFC
ITE safety: UL 60950-1
Standby power consumption <0.5W
Peak power capability
Class I
Compliant with efficiency level V requirements
Protections: over voltage / over current
TT Electronics 1 year warranty
PMP135-18
48V Medical Power Supply Desk Top Class IManufacturer: Protek Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
2.94 Amps
Output Peak Current:
3.5 Amps
Max Power:
141 Watts
Features
Protek Power PMP135-18 desk top medical AC/DC power supply
AC input range: 90~264Vac
Working temperature: 0~+60°C
Medical safety: UL ES60601-1
PFC
ITE safety: UL 60950-1
Standby power consumption <0.5W
Peak power capability
Class I
Compliant with efficiency level V requirements
Protections: over voltage / over current
TT Electronics 1 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$167.41
15
$153.46
25
$131.59
100
$119.15
REQUEST a QUOTE for higher qty discounts
