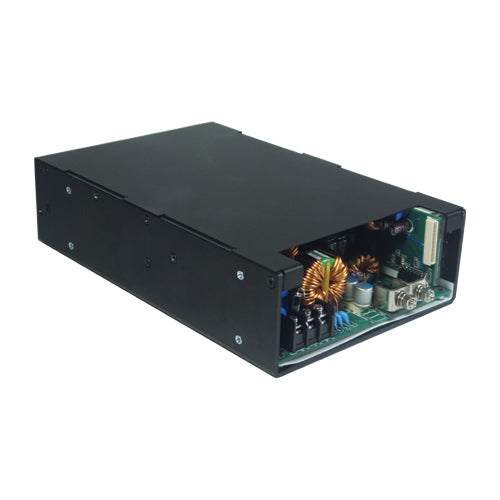

PM1100-14C
24Vdc Power Supply Medical & ITE Approvals 24Vdc 45.84Amps 1100WattsManufacturer: Protek Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$803.87
15
$736.88
25
$631.87
100
$572.15
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
45.84 Amps
Output Peak Current:
52.1 Amps
Max Power:
1100 Watts
Features
Protek Power PM1100-14C high efficiency medical power supply
AC input: 90~264Vac
Working temperature: -10~+70°C
Industrial safety approval: UL/TUV EN 60950-1
Medical safety approvals: UL ES/EN 60601-1 & IEC 60601-1-2
2xMOPP (means of patient protection)
Compact size: 5.91x9.25
Leakage current <300µA
Designed for BF rated applications
1500Vac output to ground isolation
Output touch current <100µA
Built-in active PFC
Peak power 1250W, up to 35% duty cycle
Variable speed cooling fans: low audible noise
Remote sense function: compensation for cable losses up to 0.5V
Operation up to 5,000 meters, Standby output 5Vdc at 200mA
Signal inputs & outputs: output voltage sense, power fail detect, remote inhibit & DC output OK signal
Protections: over voltage / over current / over temperature / continuous short circuit and thermal
Protek Power 1 year warranty
