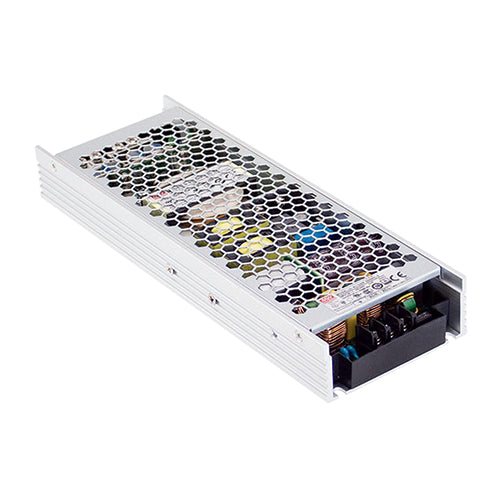

UHP-500-48
48Vdc Power Supply Fan-Less 48V 10.45A, 500 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 471 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$108.33
5
$103.27
10
$98.67
20
$95.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
10.45 Amps
Output Peak Current:
15.68 Amps
Max Power:
501 Watts
Features
AC input range: 90~264Vac
Operating temperature: -20~+70°C
Safety approvals: UL 62368-1 & TUV EN 62368-1
Withstand 300Vac surge input for 5 seconds
150% peak load capability (100ms)
Built-in PFC
Low profile/slim design: 31mm
LED indicator for power On
Withstand 5G anti-vibration
Protections: over load / over voltage / over temperature
Optional DC OK signal and redundant function
MEAN WELL 3 year warranty
UHP-500-48
48Vdc Power Supply Fan-Less 48V 10.45A, 500 WattsManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
10.45 Amps
Output Peak Current:
15.68 Amps
Max Power:
501 Watts
Features
AC input range: 90~264Vac
Operating temperature: -20~+70°C
Safety approvals: UL 62368-1 & TUV EN 62368-1
Withstand 300Vac surge input for 5 seconds
150% peak load capability (100ms)
Built-in PFC
Low profile/slim design: 31mm
LED indicator for power On
Withstand 5G anti-vibration
Protections: over load / over voltage / over temperature
Optional DC OK signal and redundant function
MEAN WELL 3 year warranty
In Stock: 471 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$108.33
5
$103.27
10
$98.67
20
$95.80
REQUEST a QUOTE for higher qty discounts
