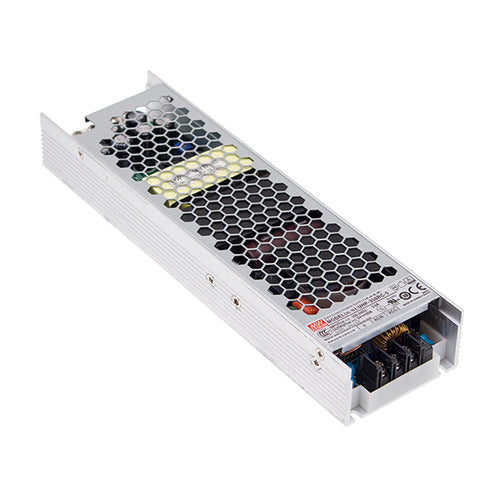

UHP-350R-5

5Vdc ITE Power Supply Redundant Function 5V 60A

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*Import tariff may apply to this product

Quantity
Unit Price
1
$80.00
5
$76.20
10
$72.80
20
$70.70

Specifications

Input Voltage:

90~264Vac

Output Voltage:

5Vdc

Output Max Current:

60 Amps

Output Peak Current:

90 Amps

Max Power:

300 Watts

Features

AC input range: 90~264Vac

Operating temperature: -30~+70°C

Safety approvals: UL 62368-1, TUV EN 62368-1 & EN 60335-1

Withstand 300Vac surge input for 5 seconds

150% peak load capability (100ms)

Built-in active PFC function

Built-in DC OK active signal and redundant function

Low profile/slim design: 31mm

LED indicator for power On

Withstand 5G anti-vibration

Protections: short circuit / over load / over voltage / over temperature

MEAN WELL 3 year warranty

UHP-350R-5

5Vdc ITE Power Supply Redundant Function 5V 60A

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

90~264Vac

Output Voltage:

5Vdc

Output Max Current:

60 Amps

Output Peak Current:

90 Amps

Max Power:

300 Watts

Features

AC input range: 90~264Vac

Operating temperature: -30~+70°C

Safety approvals: UL 62368-1, TUV EN 62368-1 & EN 60335-1

Withstand 300Vac surge input for 5 seconds

150% peak load capability (100ms)

Built-in active PFC function

Built-in DC OK active signal and redundant function

Low profile/slim design: 31mm

LED indicator for power On

Withstand 5G anti-vibration

Protections: short circuit / over load / over voltage / over temperature

MEAN WELL 3 year warranty

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*Import tariff may apply to this product

Quantity
Unit Price
1
$80.00
5
$76.20
10
$72.80
20
$70.70
