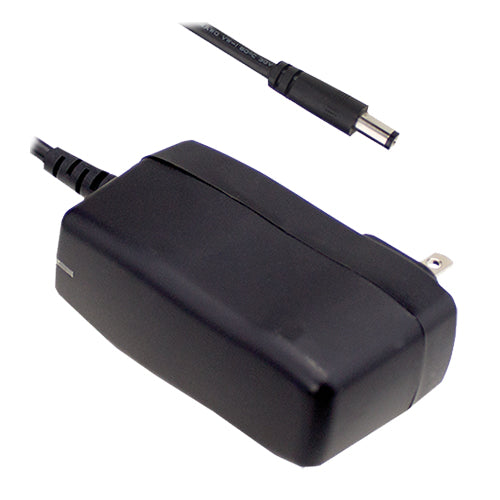

SGA60U48-P1J
48V Wall Plug-In 2 Pole USA Plug 48V 1.25AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.25 Amps
Max Power:
60 Watts
Features
AC input range: 90~264Vac
Operating temperature range: -20~+50°C
Safety standard: UL62368-1 listed
Class II power unit (without earth pin)
2 pole USA plug
Pass LPS
Energy efficient level VI
High efficiency
Low no load power consumption
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
