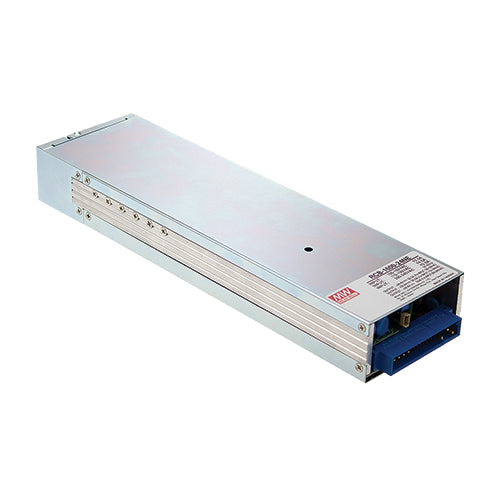

RCB-1600-24
28.8Vdc 55A, 24 Volt Battery Charger Front End Charger Rack MountableManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$429.58
5
$417.81
10
$401.32
20
$391.03
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Charge Voltage:
28.8Vdc
Max Charge Current:
55 Amps
Max Power:
1584 Watts
Features
AC input range: 90~264Vac
Operating temperature: -30~+70°C
Safety approvals: UL/EN/IEC 60950-1
Output voltage and output charging current can be adjusted via potentiometer
Built-in 3 stage charging curves and programmable curve
Built-in active PFC
Remote On/Off control function
Withstand 300Vac surge input for 5 seconds
Built-in I2C interface, PMBus protocol
Built-in OR-ing FET
Active current sharing up to 8,000W for one 19 inch rack shelf
19 inch rack shelf available
Protections: short circuit / over voltage / over temperature
MEAN WELL 5 year warranty
