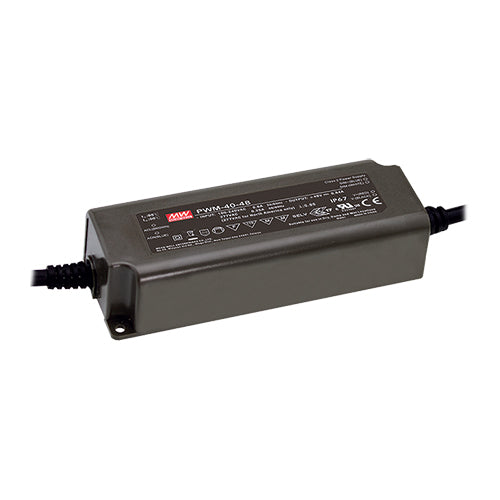

PWM-40-12
12Vdc 3.34A 12V Dimmable CV LED Driver 0~10Vdc, 10V PWM or Resistance IP67, Class II, Class 2, PFCManufacturer: MEAN WELL
View Data Sheet
In Stock: 25 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage:
12Vdc
Output Max Current:
3.34 Amps
Max Power:
40 Watts
Known Country of Origin:
China
Features
AC input: 90~305Vac
Operating temperature: -40~+70°C
UL8750 LED driver
3 in 1 dimming with 0~100% dimming range (0~10Vdc, 10V PWM or resistance)
Class 2 power unit
Class II AC Input (two wires-no FG connection)
Built in active PFC function
THD <20% when output loading ≥60% at 115Vac/230Vac input and output loading ≥75% at 277Vac input
IP67 94V-0 flame retardant plastic case
No load power consumption < 0.5W
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
