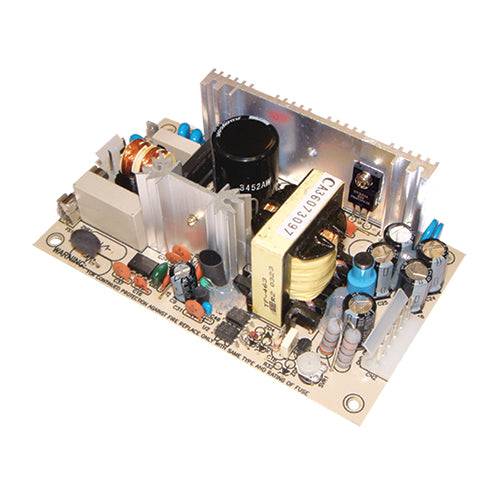

PT-65C
Triple Output Power Supply Open Frame Type, 3"x5"Manufacturer: MEAN WELL
View Data Sheet
In Stock: 149 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
7 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
2.6 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
0.7 Amps
Max Power:
65 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Operating temperature: -10~+60°C
Industrial safety certification: TUV EN 62368-1, UL 62368-1
Fixed switching frequency at 65KHz
Low leakage current
Cooling by free air convection
Protections: short circuit / over load / over voltage
MEAN WELL 2 year warranty
