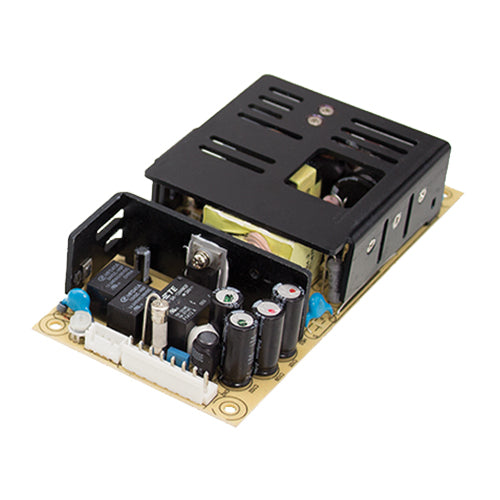

PSC-160B
27.6V3.8A +27.6V2.0A 27.6Vdc Power Supply Battery Charger, UPS FunctionManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
27.6Vdc
Output #1 Max Current:
3.8 Amps
Output Voltage #2:
27.6Vdc
Output #2 Max Current:
2 Amps
Max Power:
160 Watts
Features
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Safety certification: TUV EN 62368-1, UL 62368-1
Built-in active PFC
Cooling by free air convection
Relay contact signal output for AC OK & battery low
Low battery protection and battery reverse polairty protection by fuse
Protections: short circuit / over load / over voltage
Ideal AC/DC power supply for security systems, access systems, monitoring systems, emergency lighting systems, alarm systems & DC UPS systems.
MEAN WELL 2 year warranty
