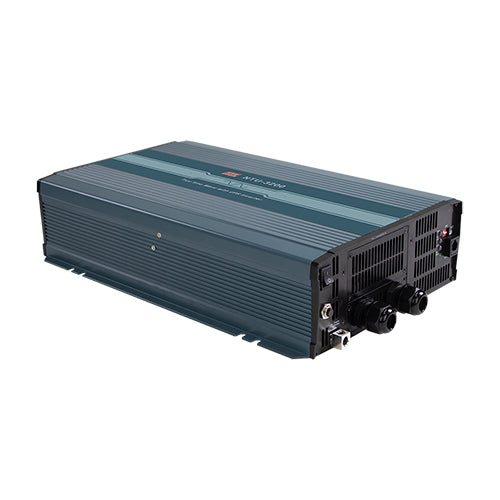

NTU-3200-124TB

DC/AC Inverter AC Output Receptacle: TB UPS Function

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*Import tariff may apply to this product

Quantity
Unit Price
1
$847.83
3
$801.37
10
$769.74
20
$750.00

Specifications

Input Voltage:

20~33Vdc

Output Voltage:

110VAC (100/110/115/120)

Max Power:

3200 Watts

Features

True sine wave output (THD<3%)

Operating temperature range: -25~+70°C

Safety certification: EN 62368-1, UL 62368-1

Safety certification: UL458 (for 112/124/148 type TB only)

High surge output power up to 6000W

Built-in UPS function (AC by-pass)

Built-in temperature controlled fan

On/Off switch

Built-in remote On/Off control

Front panel indicator for: operation status

North American AC receptacle standard (Type-US)

Universal terminal block version (Type-TB)

No load power dissipation ≤15 Watts in standby mode

Conformal coated

AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)

Input protections: reverse polarity / DC low alarm / DC low shutdown / overvoltage

Output protections: short circuit / overload / over temperature

MEAN WELL 3 year warranty
