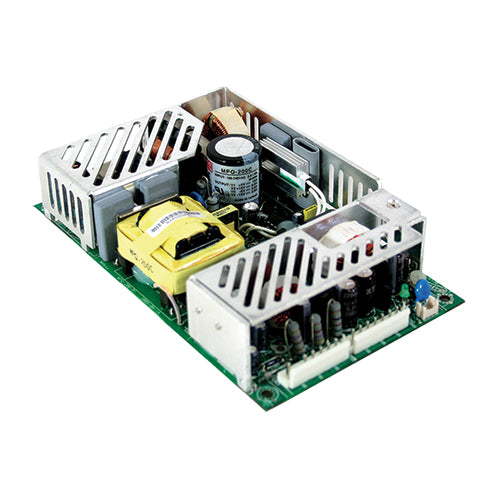

MPQ-200F

Medical Power Supply Quad Output

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*Import tariff may apply to this product

Quantity
Unit Price
1
$84.60
5
$80.50
10
$77.00
20
$74.80

Specifications

Input Voltage:

90~264Vac

Output Voltage #1:

5Vdc

Output #1 Max Current:

15 Amps

Output Voltage #2:

24Vdc

Output #2 Max Current:

2.7 Amps

Output Voltage #3:

15Vdc

Output #3 Max Current:

2 Amps

Output Voltage #4:

-15Vdc

Output #4 Max Current:

2 Amps

Max Power:

200 Watts

Features

AC input range: 90~264Vac

Operating temperature: -20~70°C

Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1

2xMOPP (means of patient protection)

Low leakage current <180µA

Approximate power: 140W with free air convection cooling and 200W with 25CFM forced air cooling

Built-in remote On/Off control, remote sense function, power good and fail signal

Protections: short circuit / over load / over voltage / over temperature

MEAN WELL 3 year warranty

MPQ-200F

Medical Power Supply Quad Output

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

90~264Vac

Output Voltage #1:

5Vdc

Output #1 Max Current:

15 Amps

Output Voltage #2:

24Vdc

Output #2 Max Current:

2.7 Amps

Output Voltage #3:

15Vdc

Output #3 Max Current:

2 Amps

Output Voltage #4:

-15Vdc

Output #4 Max Current:

2 Amps

Max Power:

200 Watts

Features

AC input range: 90~264Vac

Operating temperature: -20~70°C

Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1

2xMOPP (means of patient protection)

Low leakage current <180µA

Approximate power: 140W with free air convection cooling and 200W with 25CFM forced air cooling

Built-in remote On/Off control, remote sense function, power good and fail signal

Protections: short circuit / over load / over voltage / over temperature

MEAN WELL 3 year warranty

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*Import tariff may apply to this product

Quantity
Unit Price
1
$84.60
5
$80.50
10
$77.00
20
$74.80
