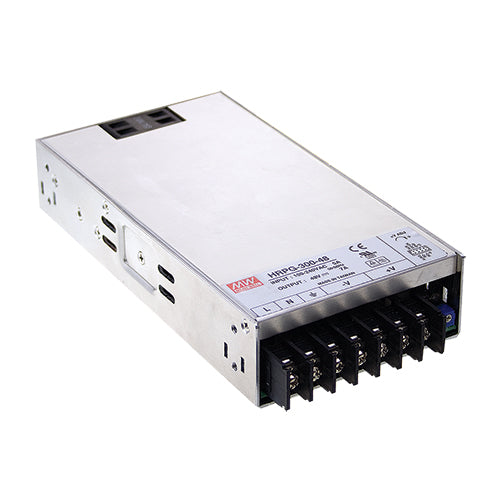

HRP-300-7.5
7.5Vdc 40A PFC Power SupplyManufacturer: MEAN WELL
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
7.5Vdc
Output Max Current:
40 Amps
Max Power:
300 Watts
Features
AC input range: 85~264Vac
Operating temperature: -40~+70°C
Safety approvals: UL 62368-1 and TUV EN 62368-1
Dimensions: 199mm x 105mm x 41mm
Withstand 300Vac surge input for 5 seconds
Forced air cooling by built-in DC fan
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in DC OK signal
LED indicator for power on
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
