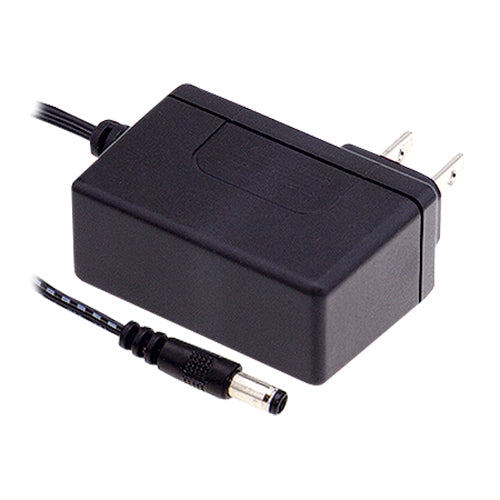

GSM12U15-P1J

15V 0.8A Medical Wall Plug-In 2 Pole USA Plug, Class II Efficiency Level VI

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$15.40
5
$14.70
10
$14.00
20
$13.60

Specifications

Input Voltage:

80~264Vac

Output Voltage:

15Vdc

Output Max Current:

0.8 Amps

Max Power:

12 Watts

Features

AC input range: 80~264Vac

Operating temperature range: -20~+70°C (with derating)

Medical safety approvals: ANSI/AAMI ES60601-1, ES60601-1-11

2xMOPP

Low leakage current <100µA

Suitable for BF applications

2 pole USA plug type

Energy efficiency Level VI

No load power consumption: <0.075W

DC output connector: 2.1 x 5.5 x 11mm, center positive

Optional DC plug types available upon request

Protections: short circuit / over voltage / over load

MEAN WELL 3 year warranty
