GEM40I24-P1J

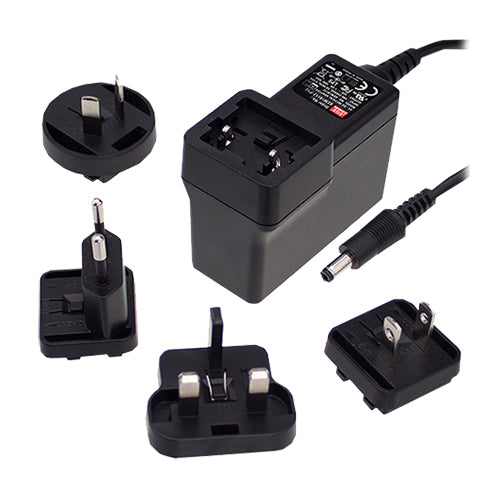

24V Medical Wall Plug-In Interchangeable AC Plugs 24V 1.66AManufacturer: MEAN WELL
View Data Sheet
In Stock: 15 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.66 Amps
Max Power:
40 Watts
Features
AC input range: 80~264Vac
Working temperature: -25~+70°C
Medical safety approval: ANSI/AAMI ES60601-1/60601-1-11
2 x MOPP (Means of Patient Protection) -primary to secondary
Suitable for BF applications with appropriate system consideration
Low leakage current: <100μA
Energy efficiency level VI requirements
No load power consumption <0.1W
Class II (without earth pin)
Interchangeable AC plugs (plug kit sold separately)
DC output connector: 2.1 x 5.5mm, center positive
Optional lock type DC plug is available
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
GEM40I24-P1J
24V Medical Wall Plug-In Interchangeable AC Plugs 24V 1.66AManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.66 Amps
Max Power:
40 Watts
Features
AC input range: 80~264Vac
Working temperature: -25~+70°C
Medical safety approval: ANSI/AAMI ES60601-1/60601-1-11
2 x MOPP (Means of Patient Protection) -primary to secondary
Suitable for BF applications with appropriate system consideration
Low leakage current: <100μA
Energy efficiency level VI requirements
No load power consumption <0.1W
Class II (without earth pin)
Interchangeable AC plugs (plug kit sold separately)
DC output connector: 2.1 x 5.5mm, center positive
Optional lock type DC plug is available
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
