GEM30I09-P1J

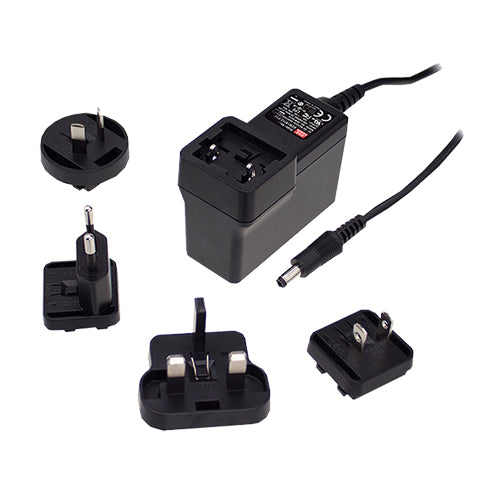

9V Medical Wall Plug-In Interchangeable AC Plugs 9V 3.33A

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$26.00
5
$24.80
10
$23.70
20
$23.00

Specifications

Input Voltage:

80~264Vac

Output Voltage:

9Vdc

Output Max Current:

3.33 Amps

Max Power:

30 Watts

Features

AC input range: 80~264Vac

Working temperature: -25~+70°C

Medical safety approval: ANSI/AAMI ES60601-1/60601-1-11

2 x MOPP (Means of Patient Protection) -primary to secondary

Suitable for BF applications with appropriate system consideration

Low leakage current: <100μA

Energy efficiency level VI

No load power consumption <0.1W

Class II (without earth pin)

Interchangeable AC plugs (plug kit sold separately)

DC output connector: 2.1 x 5.5mm, center positive

Optional lock type DC plug is available

Protections: short circuit / over load / over voltage

MEAN WELL 3 year warranty
