GEM18I05-P1J

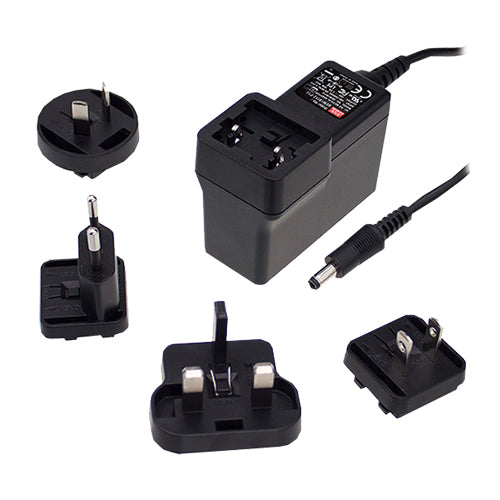

5V Medical Wall Plug-In Interchangeable AC Plugs 5V 3AmpsManufacturer: MEAN WELL
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
5Vdc
Output Max Current:
3 Amps
Max Power:
15 Watts
Features
AC input range: 80~264Vac
Working temperature: -20~+50°C
Safety standard: UL 62368-1
Medical safety approval: ANSI/AAMI ES60601-1/60601-1-11
2 x MOPP (Means of Patient Protection) -primary to secondary
Suitable for BF applications with appropriate system consideration
Low leakage current: <100μA
Energy efficiency level VI requirements
No load power consumption <0.075W
Class II (without earth pin)
Interchangeable AC plugs (plug kit sold separately)
DC output connector: 2.1 x 5.5mm, center positive
Optional lock type DC plug is available
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
GEM18I05-P1J
5V Medical Wall Plug-In Interchangeable AC Plugs 5V 3AmpsManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
5Vdc
Output Max Current:
3 Amps
Max Power:
15 Watts
Features
AC input range: 80~264Vac
Working temperature: -20~+50°C
Safety standard: UL 62368-1
Medical safety approval: ANSI/AAMI ES60601-1/60601-1-11
2 x MOPP (Means of Patient Protection) -primary to secondary
Suitable for BF applications with appropriate system consideration
Low leakage current: <100μA
Energy efficiency level VI requirements
No load power consumption <0.075W
Class II (without earth pin)
Interchangeable AC plugs (plug kit sold separately)
DC output connector: 2.1 x 5.5mm, center positive
Optional lock type DC plug is available
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
