GEM06I06-P1J

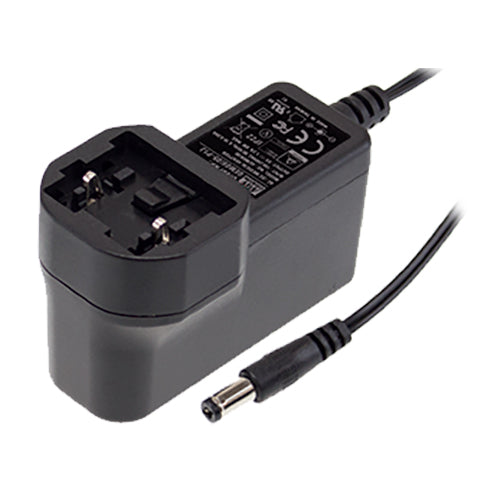

Medical Wall Plug-In Adaptor Interchangeable AC PlugsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
6Vdc
Output Max Current:
1 Amps
Max Power:
6 Watts
Features
AC input range: 80~264Vac
Working temperature: -20~+70°C
Medical safety certifications: ANSI/AAMI ES60601-1/ES60601-1-11
2xMOPP
Suitable for BF applications with appropriate system consideration
Low leakage current: <55μA
No load power consumption <0.3W
Class II (without earth pin)
DC output connector: 2.1 x 5.5mm, center positive
Protections: short circuit / over load / over voltage
Interchangeable AC plugs (plug kit sold separately)
MEAN WELL 3 year warranty
