SRW-100-4010

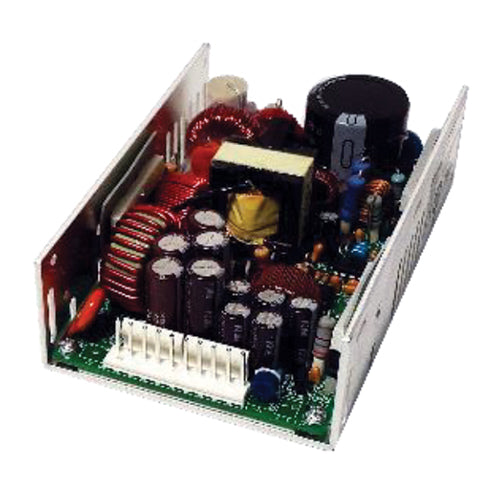

Quad Output Power Supply, Chassis ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$225.37
3
$208.03
10
$189.12
25
$178.16
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
4 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
9Vdc
Output #4 Max Current:
2.5 Amps
Max Power:
100 Watts
Features
IPD SRW-100-4010 power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
SRW-100-4010
Quad Output Power Supply, Chassis ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
4 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
9Vdc
Output #4 Max Current:
2.5 Amps
Max Power:
100 Watts
Features
IPD SRW-100-4010 power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$225.37
3
$208.03
10
$189.12
25
$178.16
REQUEST a QUOTE for higher qty discounts
