SRP-40A-4006

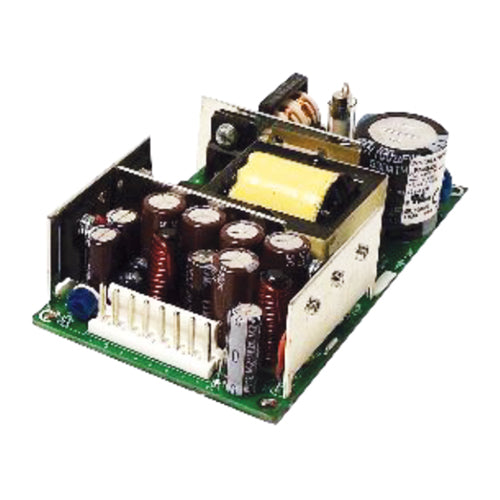

Quad Output Power Supply, Open Frame 2.5"x4.25", ITE & Medical CertificationManufacturer: IPD
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
1.5 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
0.7 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
0.7 Amps
Max Power:
40 Watts
Features
IPD SRP-40A-4006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.5x4.2x1.2
Available with optional chassis and cover
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
SRP-40A-4006
Quad Output Power Supply, Open Frame 2.5"x4.25", ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
1.5 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
0.7 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
0.7 Amps
Max Power:
40 Watts
Features
IPD SRP-40A-4006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.5x4.2x1.2
Available with optional chassis and cover
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
