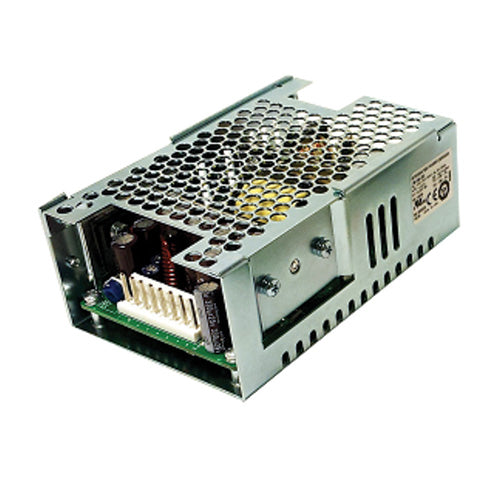

SRP-40A-4001-CH

Quad Output Power Supply, Chassis ITE & Medical Certification

Manufacturer: IPD

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$85.78
10
$82.24
25
$81.48

Specifications

Input Voltage:

85~264Vac

Output Voltage #1:

3.3Vdc

Output #1 Max Current:

5 Amps

Output Voltage #2:

5Vdc

Output #2 Max Current:

3 Amps

Output Voltage #3:

12Vdc

Output #3 Max Current:

0.7 Amps

Output Voltage #4:

-12Vdc

Output #4 Max Current:

0.7 Amps

Max Power:

40 Watts

Features

IPD SRP-40A-4001-CH chassis power supply with medical approvals

AC input range: 85~264Vac

Operating temperature: 0~+70°C

EN 60950-1 ITE certification and EN 60601-1 medical certification

Small compact size, open frame dimensions: 2.5x4.2x1.2

Available in open frame and chassis/cover

Protections: over voltage / over power / over current

Integrated Power Designs 2 year warranty
