REL-70-4006
Quad Output Power Supply , Open Frame, 2.5"x4.5" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$106.71
3
$103.52
10
$102.00
25
$97.51
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
2 Amps
Max Power:
70 Watts
Features

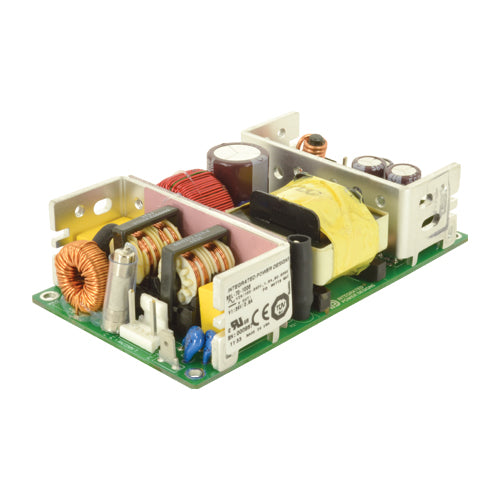

IPD REL-70-4006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size, open frame dimensions: 2.5x4.5x1.2
Available with optional chassis and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
REL-70-4006
Quad Output Power Supply , Open Frame, 2.5"x4.5" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
2 Amps
Max Power:
70 Watts
Features
IPD REL-70-4006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size, open frame dimensions: 2.5x4.5x1.2
Available with optional chassis and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
