REL-150-1009

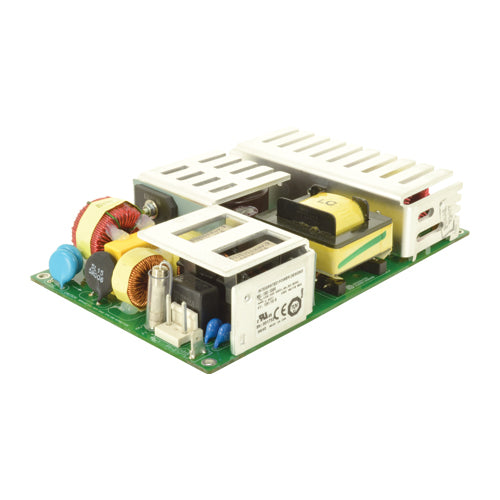

31 Vdc Power Supply , Open Frame, 3.8"x6" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$146.26
3
$141.90
10
$139.81
25
$135.52
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
31Vdc
Output Max Current:
5.4 Amps
Max Power:
167 Watts
Features
IPD REL-150-1009 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
UL60950-1 ITE and AAMI/ANSI ES 60601-1 medical certifications
EN 60950-1 ITE certification and EN 60601-1 medical certificationPFC
Small compact size, open frame dimensions: 3.83x6x1.32
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
REL-150-1009
31 Vdc Power Supply , Open Frame, 3.8"x6" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
31Vdc
Output Max Current:
5.4 Amps
Max Power:
167 Watts
Features
IPD REL-150-1009 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
UL60950-1 ITE and AAMI/ANSI ES 60601-1 medical certifications
EN 60950-1 ITE certification and EN 60601-1 medical certificationPFC
Small compact size, open frame dimensions: 3.83x6x1.32
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
