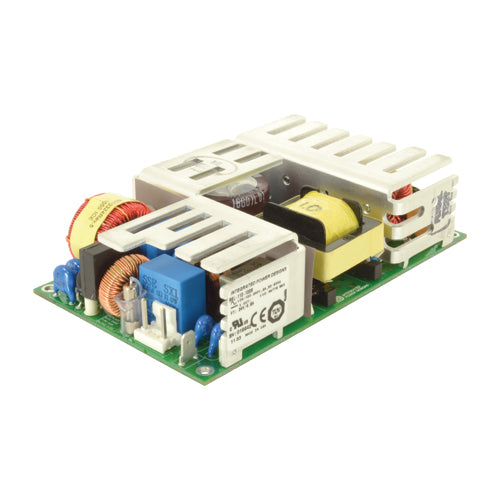

REL-110-4005
Quad Output Power Supply , Open Frame, 3x5 , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$155.32
3
$150.69
10
$148.47
25
$140.55
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
6 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
2 Amps
Max Power:
110 Watts
Features
IPD REL-110-4005 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size, open frame dimensions: 3x5 inchesx1.32
Available with optional chassis and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
