DC4-70-4002-CH

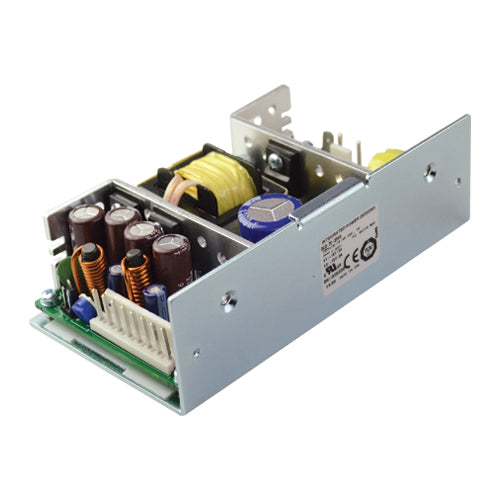

DC/DC Converter, Quad Output, ChassisManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$112.86
3
$109.49
10
$107.88
25
$103.30
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
36~72Vdc
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
3.3Vdc
Output #2 Max Current:
5 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
2 Amps
Max Power:
70 Watts
Features
IPD DC4-70-4002-CH DC/DC converter with medical approvals
DC input range: 36~72Vdc (48Vdc)
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, chassis dimensions: 2.62x4.79x1.48
Available in open frame or optional cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
