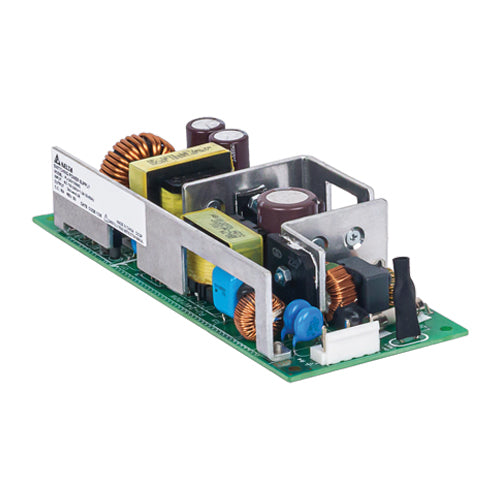

PJ-12V100WBNA
12Vdc 8.5A Power Supply Open Frame 12 Volts 8.5 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$48.14
10
$47.40
25
$47.04
100
$45.31
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
8.5 Amps
Max Power:
102 Watts
Features
Open frame power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 60950-1, UL/cUL 62368-1
SELV
Leakage current <0.2mA
Built-in PFC
Conformal coating on PCBA to protect against common dust and pollutants
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 2 year warranty
PJ-12V100WBNA
12Vdc 8.5A Power Supply Open Frame 12 Volts 8.5 AmpsManufacturer: Delta
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
8.5 Amps
Max Power:
102 Watts
Features
Open frame power supply
AC input range: 85~264Vac
Operating temperature range: -10~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 60950-1, UL/cUL 62368-1
SELV
Leakage current <0.2mA
Built-in PFC
Conformal coating on PCBA to protect against common dust and pollutants
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 2 year warranty
