AH08P-5

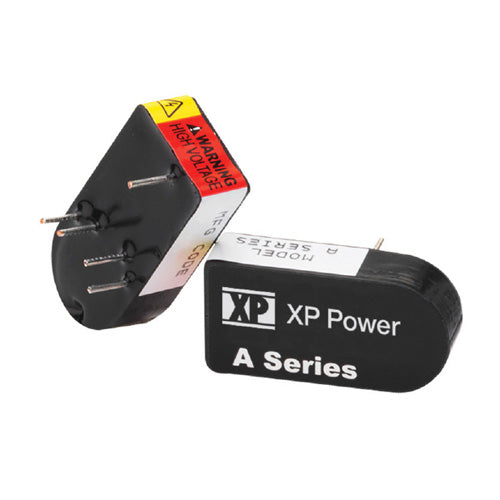

800Vdc 0.00187A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$156.92
5
$154.57
10
$152.21
25
$147.50
100
$142.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
0.7~5Vdc
Output Voltage:
800Vdc
Output Max Current:
0.00187 Amps
Max Power:
1.5 Watts
Features
XP Power AH08P-5 DC/HVDC converter
0.7~24Vdc input range
I/O isolation: <±500Vdc (bias on output return)
Operating temperature range: -25~+75°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
No minimum load required
Unregulated output
Protections: short circuit
XP Power 3 year warranty
