A15P-5

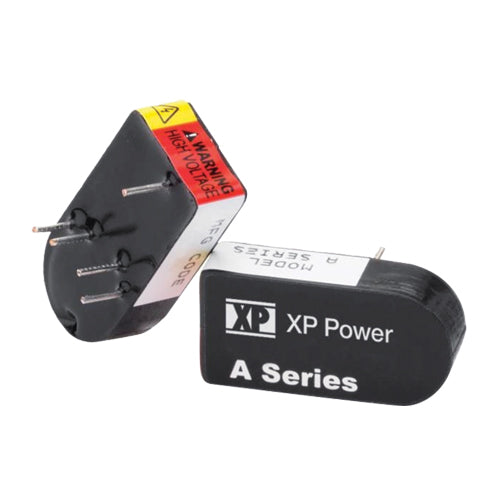

1500Vdc 0.00066A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$163.59
5
$161.14
10
$158.68
25
$153.77
100
$148.87
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
0.7~5Vdc
Output Voltage:
1500Vdc
Output Max Current:
0.00066 Amps
Max Power:
1 Watts
Features
XP Power A15P-5 DC/HVDC converter
0.7~24Vdc input range
I/O isolation: <±500Vdc (bias on output return)
Operating temperature range: -25~+75°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
No minimum load required
Unregulated output
Protections: short circuit
XP Power 3 year warranty
A15P-5
1500Vdc 0.00066A, High Voltage DC/DC ConverterManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
0.7~5Vdc
Output Voltage:
1500Vdc
Output Max Current:
0.00066 Amps
Max Power:
1 Watts
Features
XP Power A15P-5 DC/HVDC converter
0.7~24Vdc input range
I/O isolation: <±500Vdc (bias on output return)
Operating temperature range: -25~+75°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
No minimum load required
Unregulated output
Protections: short circuit
XP Power 3 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$163.59
5
$161.14
10
$158.68
25
$153.77
100
$148.87
REQUEST a QUOTE for higher qty discounts
