Power Worth Searching For
QHL75300S48

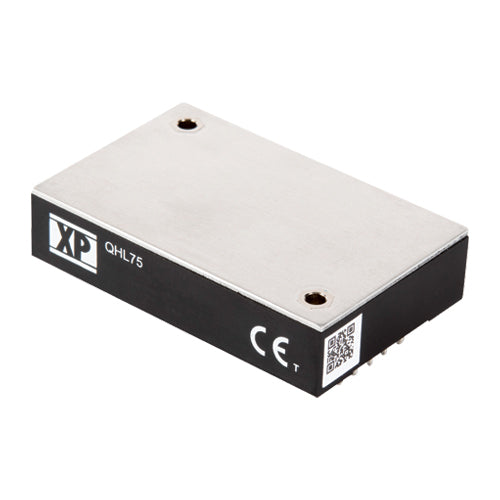

48Vdc 1.56A, DC/DC Converter, Quarter BrickManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$105.02
5
$101.87
10
$98.72
25
$94.52
100
$88.22
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
180~450Vdc
Output Voltage:
48Vdc
Output Max Current:
1.56 Amps
Max Power:
75 Watts
Features
XP Power QHL75300S48 industrial DC/DC converter
180~450Vdc input range
Operating temperature range: -40~+105°C
Industrial safety certification: UL 62368-1
MIL-STD-810F
Compliance to IEC 61373 for shock and vibration
I/O isolation: 3000Vac
Remote On/Off
Remote sense function
Output voltage trim function
Fully regulated output
Protections: short circuit / overload / overvoltage / over temperature / undervoltage-lockout
XP Power 3 year warranty
QHL75300S48
48Vdc 1.56A, DC/DC Converter, Quarter BrickManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
180~450Vdc
Output Voltage:
48Vdc
Output Max Current:
1.56 Amps
Max Power:
75 Watts
Features
XP Power QHL75300S48 industrial DC/DC converter
180~450Vdc input range
Operating temperature range: -40~+105°C
Industrial safety certification: UL 62368-1
MIL-STD-810F
Compliance to IEC 61373 for shock and vibration
I/O isolation: 3000Vac
Remote On/Off
Remote sense function
Output voltage trim function
Fully regulated output
Protections: short circuit / overload / overvoltage / over temperature / undervoltage-lockout
XP Power 3 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$105.02
5
$101.87
10
$98.72
25
$94.52
100
$88.22
REQUEST a QUOTE for higher qty discounts
