JMR0324S05

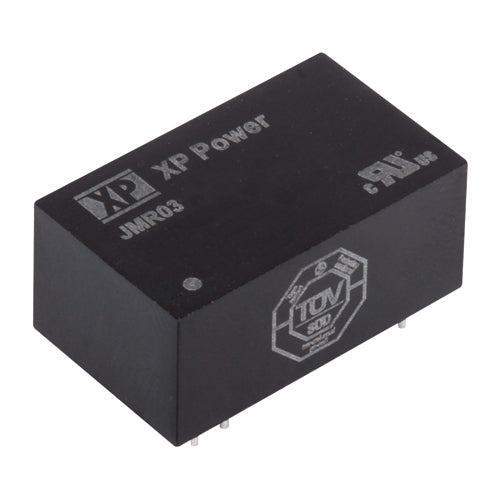

5Vdc 0.7A, Medical DC/DC Converter, Medical & ITE Certifications, 4:1 Input, Single OutputManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$35.94
5
$34.86
10
$33.78
25
$32.35
100
$30.19
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
5Vdc
Output Max Current:
0.7 Amps
Max Power:
3.5 Watts
Known Country of Origin:
Taiwan
Features
XP Power JMR0324S05 DIP package medical DC/DC converter
Ultra-Wide 4:1 input range
Operating temperature range: -40~+90°C
Medical safety certification: ANSI/AAMI ES/IEC/EN 60601-1
2xMOPP
Suitable for both Type BF and CF rated applications
Industrial safety certification: UL 62368-1
Leakage current 2µA
Remote On/Off
I/O isolation: 5000Vac
Regulated output
Operation up to 5000m altitude
Protections: short circuit / overload
XP Power 3 year warranty
