Power Worth Searching For
JHM0312S12

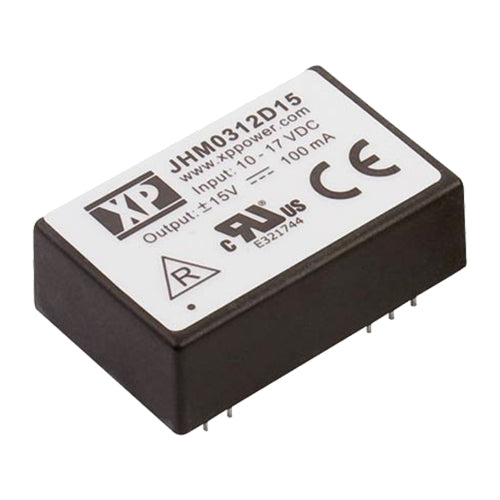

12Vdc 0.25A, Medical DC/DC ConverterManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$32.86
5
$31.87
10
$30.89
25
$29.57
100
$27.60
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
10~17Vdc
Output Voltage:
12Vdc
Output Max Current:
0.25 Amps
Max Power:
3 Watts
Features
XP Power JHM0312S12 medical DC/DC converter
Operating temperature range: -20~+100°C
Medical safety certification: ANSI/AAMI ES/IEC/EN 60601-1
2µA patient leakage current
I/O isolation: 3000Vac
Input filter meets EN 55022 class A
Output voltage trim function
No minimum load required
Fully regulated output
Protections: short circuit / overload / overvoltage
XP Power 3 year warranty
