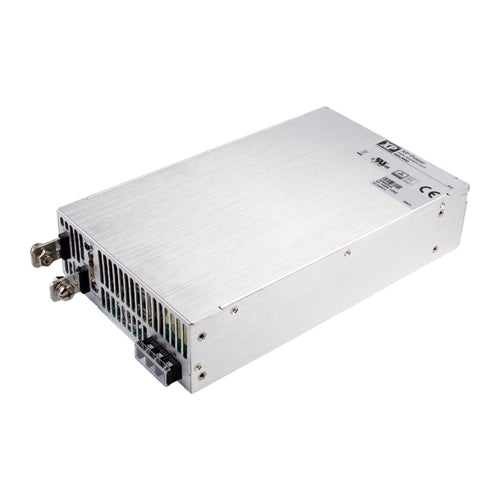

HDL3000PS60
60Vdc 50A, 60V Enclosed Type Power Supply, Enclosed Type with Fans, 60 Volts 50 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
60Vdc
Output Max Current:
50 Amps
Max Power:
3000 Watts
Features
XP Power HDL3000PS60 programmable power supply
AC input range: 90~264Vac
Operating temperature range: -20~+60°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current 3mA max
Built-in remote On/Off
Remote sense function
DC OK signal
LED indicator for power On
Variable speed cooling fans
Programmable output voltage and output current
Current sharing up to 5 units
Built-in PFC
Built-in user selectable 5V/0.5A or 9V/0.3A auxiliary outputs
High power density: 14.4W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
