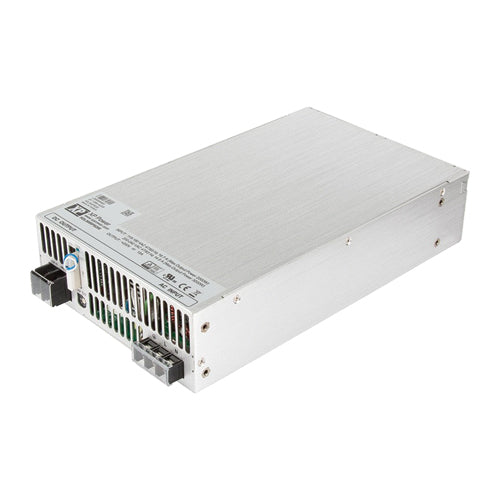

HDL3000PS400
400Vdc 7.5A, 400V Programmable Power Supply, 400 Volts 7.5 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
400Vdc
Output Max Current:
7.5 Amps
Max Power:
3000 Watts
Features
XP Power HDL3000PS400 high voltage programmable power supply
AC input range: 90~264Vac
Operating temperature range: -20~+60°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current 1mA max
Built-in remote On/Off
DC OK signal
LED indicator for power On
Variable speed cooling fans
Programmable output voltage (0-105%)
Programmable output current (0-105%)
Parallel operation
Built-in active current sharing
Built-in user selectable 5V/0.5A or 9V/0.3A auxiliary outputs
High power density: 14.4W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
HDL3000PS400
400Vdc 7.5A, 400V Programmable Power Supply, 400 Volts 7.5 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage:
400Vdc
Output Max Current:
7.5 Amps
Max Power:
3000 Watts
Features
XP Power HDL3000PS400 high voltage programmable power supply
AC input range: 90~264Vac
Operating temperature range: -20~+60°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Low earth leakage current 1mA max
Built-in remote On/Off
DC OK signal
LED indicator for power On
Variable speed cooling fans
Programmable output voltage (0-105%)
Programmable output current (0-105%)
Parallel operation
Built-in active current sharing
Built-in user selectable 5V/0.5A or 9V/0.3A auxiliary outputs
High power density: 14.4W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
