FCB100US15
15Vdc 6.7A, 15Vdc Power Supply, 2x4 Open Frame, 15 Volts 6.7 AmpsManufacturer: XP Power
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$39.90
5
$38.70
10
$37.51
25
$35.91
100
$33.52
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
15Vdc
Output Max Current:
6.7 Amps
Max Power:
100 Watts
Features

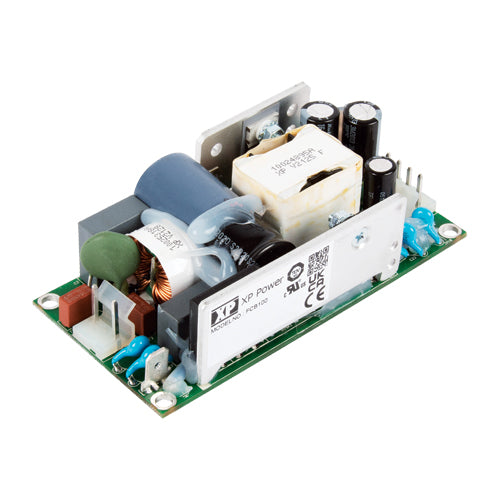

XP Power FCB100US15 2x4 inches open frame power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
EN55032, EN55011 Class B conducted and radiated emissions
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Protection Class I & II
No load power consumption ≤0.3 Watts
Low earth leakage current <270µA
Protections: short circuit / overvoltage / overload / over temperature
XP Power 3 year warranty
FCB100US15
15Vdc 6.7A, 15Vdc Power Supply, 2x4 Open Frame, 15 Volts 6.7 AmpsManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
15Vdc
Output Max Current:
6.7 Amps
Max Power:
100 Watts
Features
XP Power FCB100US15 2x4 inches open frame power supply
AC input range: 80~264Vac
Operating temperature range: -25~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
EN55032, EN55011 Class B conducted and radiated emissions
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Protection Class I & II
No load power consumption ≤0.3 Watts
Low earth leakage current <270µA
Protections: short circuit / overvoltage / overload / over temperature
XP Power 3 year warranty
