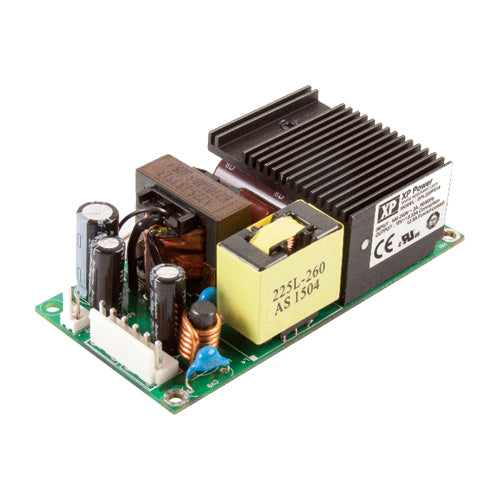

EPL225PS12
12Vdc 18.75A, Open Frame Power Supply, Medical & ITE Certifications, 12 Volts 18.75 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$107.64
5
$104.41
10
$101.18
25
$96.88
100
$90.42
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
18.75 Amps
Max Power:
225 Watts
Features
XP Power EPL225PS12 chassis medical & ITE power supply
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC/EN 60950-1, UL 60950-1
Low earth leakage current 230µA max
Built-in PFC
High efficiency
Built-in remote On/Off
No load power consumption <0.5 Watts
Operation up to 5000m altitude
High power density: 12.2W/cubic inch
Protections: overvoltage / overload / short circuit / over temperature
XP Power 3 year warranty
